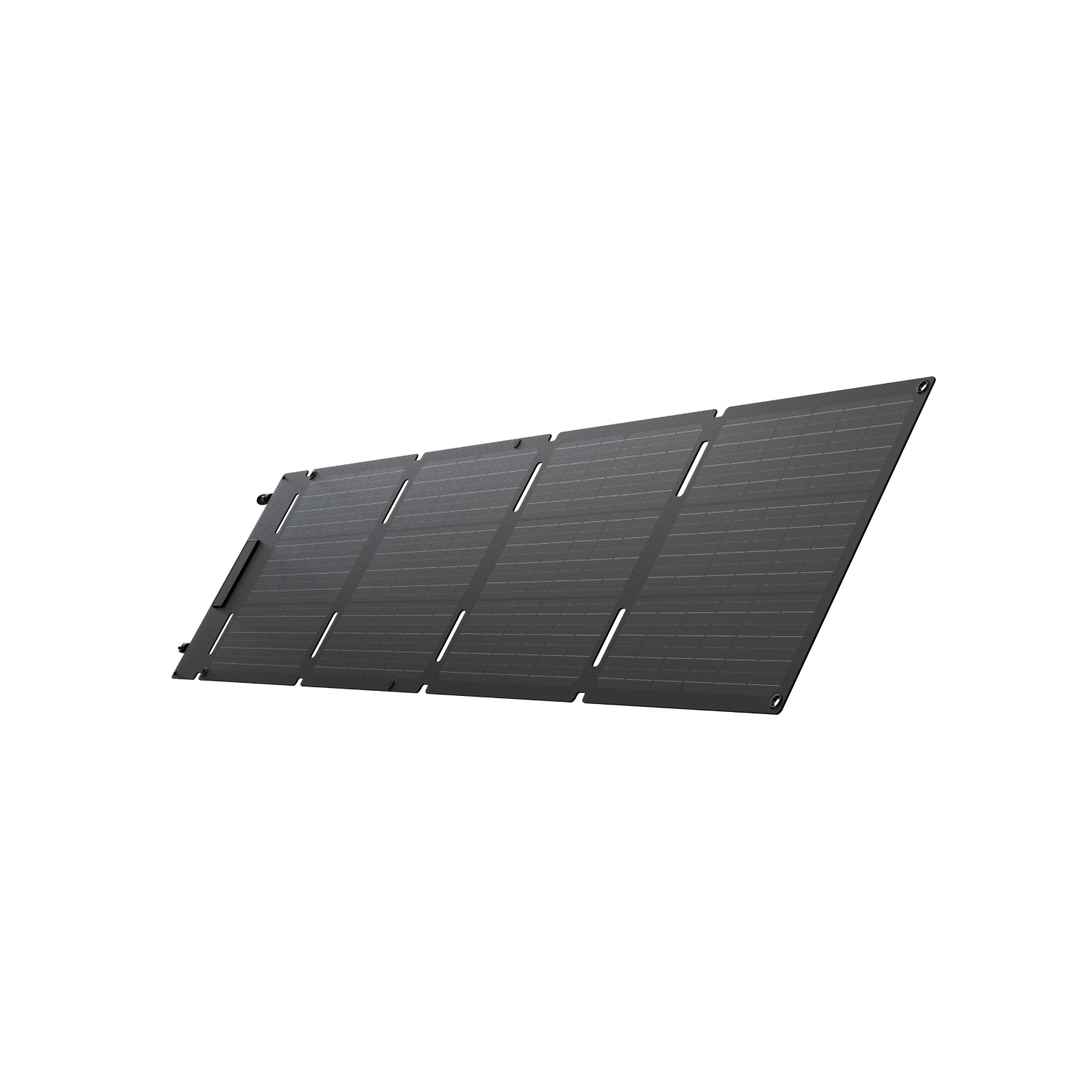

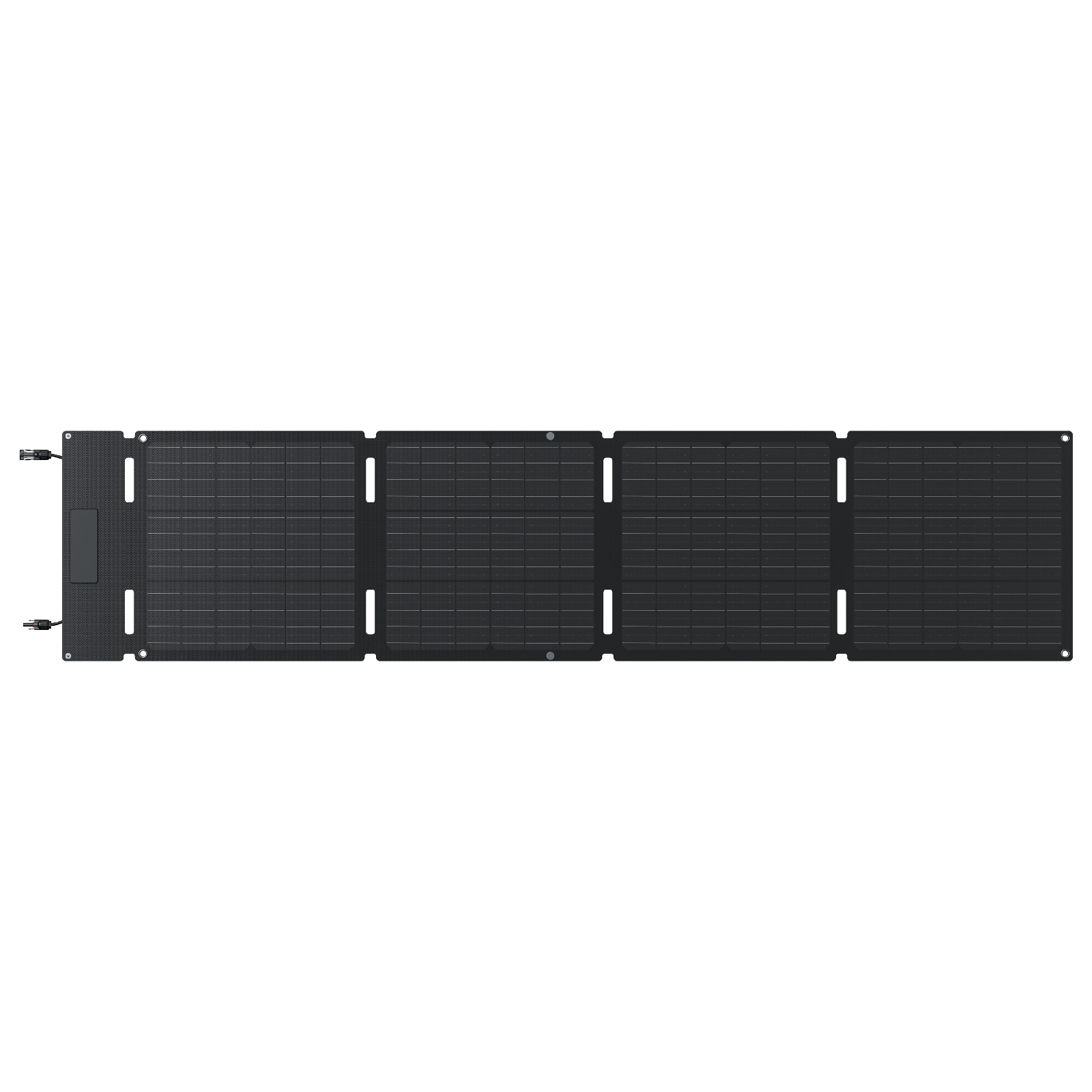

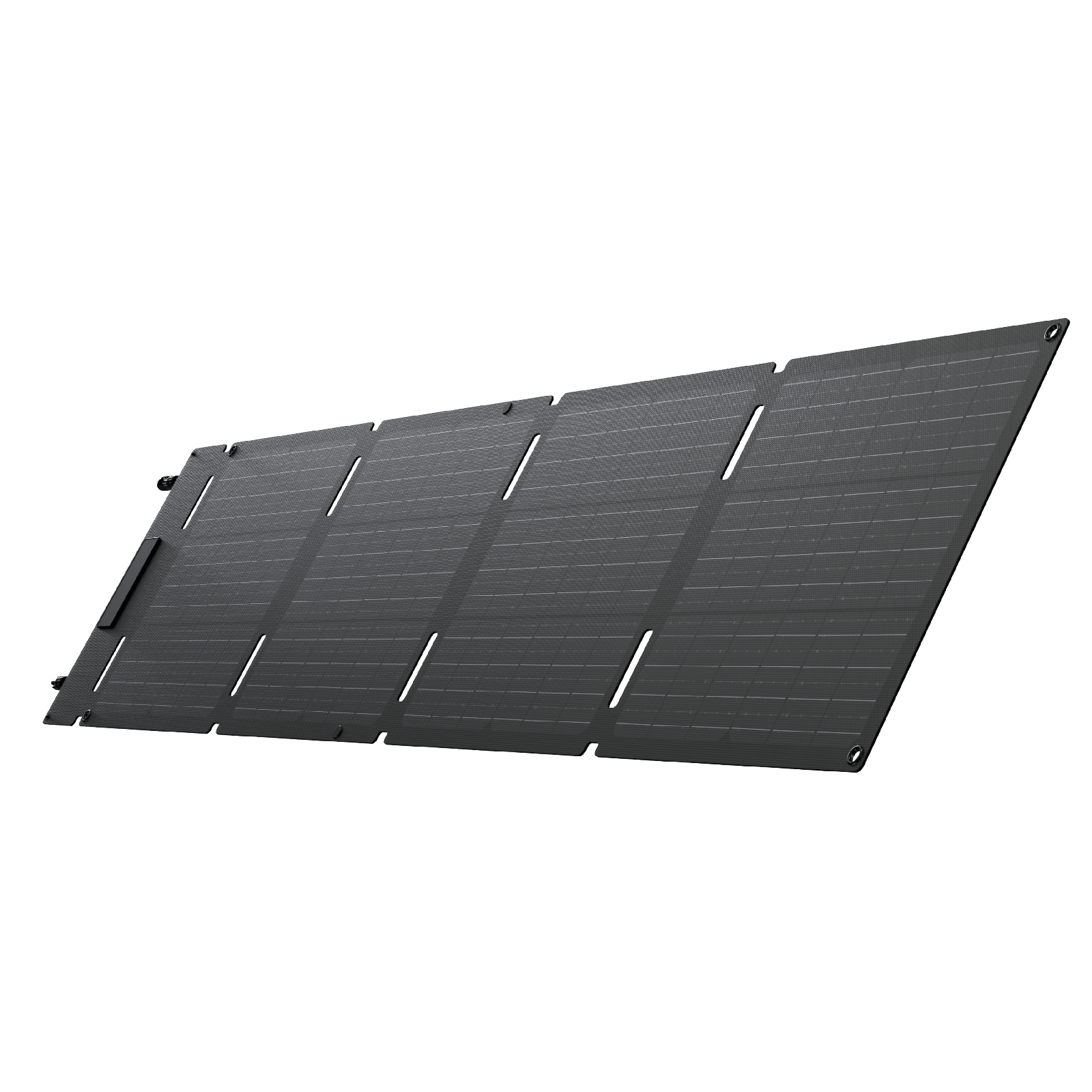

EcoFlow 60W Portable Solar Panel
✓ EcoFlow Authorized Dealer · 5-Year Warranty · Free Shipping to the US
- Next-gen N-Type TOPCon cells deliver up to 25% conversion efficiency for faster charging
- Type-C direct output — charge phones, laptops, and air pumps straight from the panel
- Extremely compact four-fold design folds down to fit in a backpack, SUV, or mini-van
- IP68 waterproof with a protective ETFE film — keeps generating power even in downpours
- Built-in hanging slots — hang it on a tent or backpack and charge on the go
Specifications
| Weight | Approx. 2.0 kg (4.41 lbs) |
|---|---|
| Rated Power | 60W(+/-3W) |
| Open Circuit Voltage | 25.5V |
| Short Circuit Current | 3.1A |
| Connector Type | Photovoltaic connectors (adaptedto MC4 connectors) |
| Folded Dimensions | 317x309x45 mm(12.48x12.17x1.77 in) |
| Unfolded Dimensions | 1356x309x25mm(53.39x12.17x0.98 in) |
| Waterproof Certification | IP68 |
| Cell Type | TOPCon monocrystalline silicon |
| Operating&Storage Temperature | -4° F to 185° F (-20° C to 85° C) |
| Optimal OperatingVoltage | 21.9V |
| Optimal OperatingCurrent | 2.9A |
| Efficiency | 25% |
| Type-C Version General Info | 60W(+/-5W) |
| 25.6V | 3.06A |
| DC5521/Type-C | 317x309x40mm(12.48x12.17x1.57 in) |
| 1356x309x16 mm(53.39x12.17x0.63 in) | Max Power Voltage (Vmp) |
| 22V | Max Power Current (Imp) |
| 2.94A | DC5521 Output |
| 60W (±5W)22V/2.94A | Type-C Output |
| EcoFlow 60W Solar Panel | X 1 |
| Solar to XT60i Charging Cable | 60W Portable Solar Panel Bag |
FAQ
When a solar panel is actually being used, it is normal that the actual power does not reach the rated power. Below are factors that will cause the power to be lower than the rated power and how to fix them.
The strength of the sun's rays will cause the output power to fluctuate. While it may be relatively close to the tested conditions at noon on a clear day, it may be less in the morning or afternoon. Weather conditions will affect the light conditions, and hazy, cloudy, or rainy weather will cause the actual power to be much less than the rated power.
The surface temperature of the solar panel will affect the power performance of the solar panel. The lower the surface temperature, the better the power performance. For example, the power of the solar panel in the winter will be higher than in the summer, which is normal. In summer, solar panels are exposed to light at a temperature close to 60°C; even if the light is better, the power will be 13% lower than the rated power.
In good lighting, the solar panel can be perpendicular to the sunlight for better performance. A 10-degree difference between the light and the 90-degree angle of the panel has little effect on the power.
When the solar panel is in use, try not to have anything covering the surface, including shadows, foreign objects, glass interferences, and even dust.
The product may be faulty if there is no power or the power is much less than the rated data if the above conditions are all satisfied. Contact after-sales for processing.
